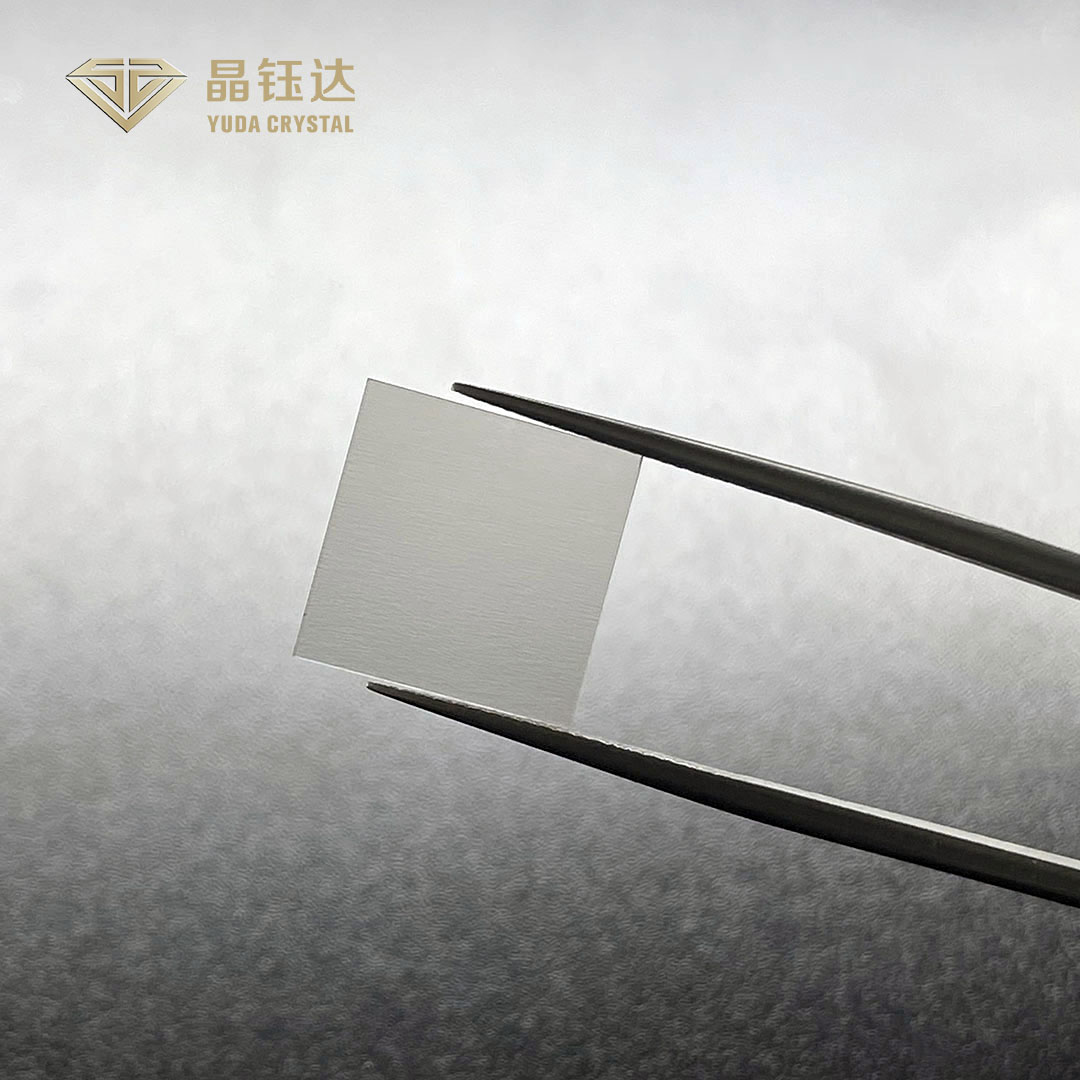

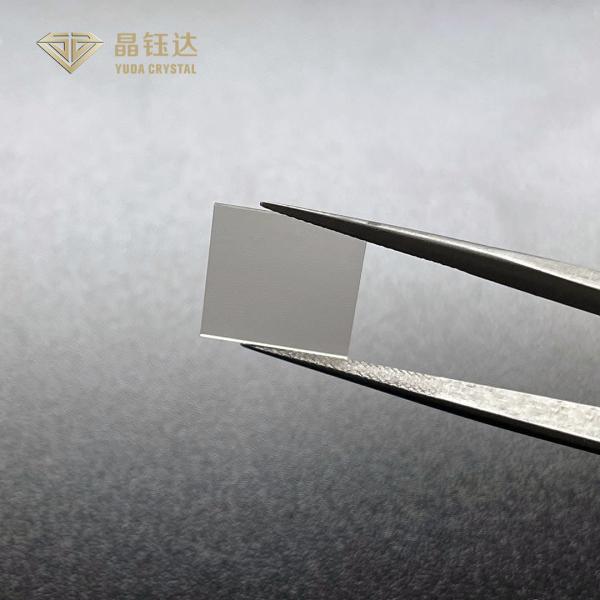

10mm*10mm Square Shape Optical Grade CVD Single Crystal Diamonds
CVD Single Crystal Diamonds Description
CVD diamond is made at low pressure. The mixture of carbon
containing gas and hydrogen is excited to decompose at high
temperature and pressure lower than the standard atmospheric
pressure to form active diamond carbon atoms, which are then
deposited on the substrate to form polycrystalline diamond (or
single or quasi single crystal diamond is deposited under
controlled deposition conditions). Because CVD diamond does not
contain any metal catalyst, its thermal stability is close to that
of natural diamond.
The hardness, wear resistance, thermal conductivity and thermal
stability of CVD diamond materials are much better than those of
PCD materials, which can be comparable with single crystal diamond.
Therefore, CVD diamond materials can achieve efficient processing
of high hardness materials and difficult to machine materials, such
as glass fiber reinforced plastics. It allows higher processing
speed and shows longer service life. With the improvement of
industrial processing technology and efficiency in the world, it
will replace the widely used PCD blade material in a large range.
CVD diamond material has excellent surface finish and low friction
coefficient after polishing, which can greatly reduce the cutting
force and friction heat generated during cutting. It has excellent
anti burr performance, and the machining finish is close to that of
single crystal diamond tool.
Parameters of CVD Single Crystal Diamonds
| CVD Single Crystal Diamonds Details |
| Brand Name | Yuda Crystal |
| Name | CVD Single Crystal Diamonds |
| Diamond Color | White, Colorless or Light brown |
| Grade | Optical Grade Diamond |
| Surface | As Grown Or Laser Cut |
| Thickness | 0.5mm |
| Edge | Laser Cut or Polished |
| Size | 8*8mm, can customize |
| Shape | Can customize |
| Application | For Making Tools |
| Crystal Orientation | 100 110 111 |
| Delivery Time | 1 - 15 Working Days Base on Order Quantity |
| Payment Terms | 100% Payment In Advance |
| Payment Methods | T/T, PayPal, Western Union, Bank Transfer |
| Shipping way | DHL, FedEx, SF Express, UPS, EMS, TNT etc |
| M.O.Q | Negotiable |
| Diamond Type | Synthetic(lab created) |
| Location | Zhengzhou, China |
| Fire Dispersion | 0.044(Same as Natural Diamond) |
| Brilliance Refraction Index | 2.42(Same as Natural Diamond) |
| Relative Density | 3.52(Same as Natural Diamond) |
| Chemical Composition | Carbon(Same as Natural Diamond) |
| Moh's Hardness | 10(Same as Natural Diamond) |
CVD Single Crystal Diamonds Introduction
Natural diamonds are created by nature and are the result of high
temperature and pressure formed over billions of years. The Lab
Grown Diamonds are produced in the laboratory, usually in a few
weeks. The chemical difference between the two is same.
So how do you distinguish between Lab Grown Diamonds and natural
diamonds?
There is no obvious difference between the Lab Grown Diamonds and
natural diamonds. Even professional gemologists need special
equipment to identify them. By zooming in, professionals will be
able to discern subtle contrasts in diamond inclusions grown and
mined in the laboratory.
| The Difference Between Lab Diamond And Natural Diamond |
| Properties | Earth Mined | Lab Created |
| Guaranteed Conflict-Free | No | Yes |
| Hardness (MOHS) | 10 | 10 |
| SP3 Carbon Diamond Bonds (%) | 100% | 100% |
| Internal Crystal Structure | Face-Centered Cubic | Face-Centered Cubic |
| Hardness Comparable | 2.42 | 2.42 |
| Relative Diversity | 3.52 | 3.52 |
| Color Diffusion | 0.044 | 0.044 |
| Color | Various Grades | K to D grades |
| Price | $$$$$ | $$$ |
CVD Single Crystal Diamonds Details
